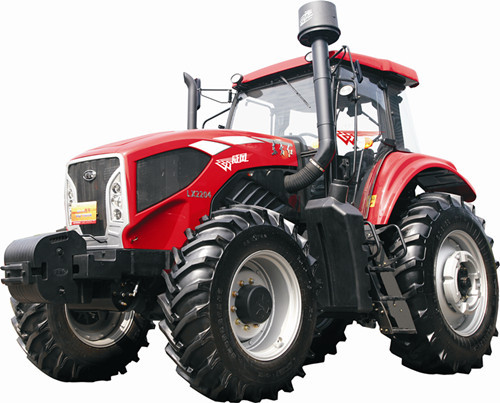

Dongfanghong-LX2204

YTO Group (YTO)

Write a Review
SKU:
Dongfanghong-LX2204-4WD

Product Overview

Application:
Designed for subsoiling, plowing, disc harrowing, combined land preparation and heavy combined operations, for large-scale dry-land farming. It is a 220-HP-class, high-power 4WD high-efficiency tractor for heavy implements.

Highlights:
The Dongfanghong LX2204 series is a 220-HP-class high-power 4WD tractor developed by YTO for heavy combined implement work. It is equipped with either a Dongfanghong YTN9/LR6M series or a SDEC SC9DF/SC7H series six-cylinder high-pressure common-rail turbo-intercooled engine, with a fuel-saving switch for economy and environmental performance; a reinforced heavy-duty transmission with main-gear synchromesh shifting and optional creeper gears; high lift with forced-down + position control, optional imported electro-hydraulic lifter; 3 hydraulic outlets; a 400 L large fuel tank for longer operation per fill; a fully enclosed air-conditioned cab with a 7-inch LCD color instrument cluster and rear-view camera for comfort; an imported Carraro front axle, rear sliding axle for stepless tread adjustment, and optional front-single/rear-dual or imported radial tires for better flotation.

Engine Rated Power kW/HP:
162

Engine Rated Speed r/min:
2200

Overall Dimensions (L×W×H) mm:
5580×2860×3400

Maximum Ballast Weight Front/Rear kg:
810/450

Front Track Width (Factory) mm:
1904~2252

Rear Track Width (Factory) mm:
1780~2288

Tire Model (Front/Rear):
16.9-28/20.8-38

Minimum Turning Radius (Without Braking) m:
Single-side brake 5.0±0.2 / Without single-side brake 6.2±0.2

Minimum Ground Clearance mm:
470

Number of Gears:
12F+4R

Forward Speed Range km/h:
2.00~36.69

Reverse Speed Range km/h:
4.44~14.48

Rated Drawbar Pull kN:
70

Maximum PTO Power kW:
145

Plowing Depth Control Method:
Position Control, Float Control

PTO Speed (r/min):
540/1000
