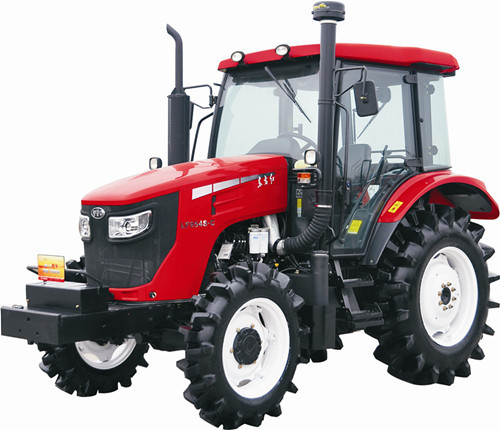

Dongfanghong-LF954S-C

YTO Group (YTO)

Write a Review
SKU:
Dongfanghong-LF954S-C-4WD

Product Overview

Application:
Designed for paddy rotary tillage, plowing, subsoiling, field preparation, combined implements and transport, mainly for paddy fields with dry-land capability. It is the most powerful 95-HP-class, power-shuttle paddy-type 4WD tractor in this series.

Highlights:
The Dongfanghong LF954S-C series is the most powerful YTO Zhirui LF-C power-shuttle tractor, developed for high-horsepower efficient paddy combined operations. It is equipped with an LR4A3LU22/0700E four-cylinder turbocharged engine rated 70 kW/2200 rpm with strong power; a 12F+12R front electro-hydraulic power-shuttle transmission enables forward/reverse changes with a flick of the switch for high efficiency; a 12-inch dry single-plate dual-action clutch, diaphragm-spring loaded and electro-hydraulically operated, stable and reliable; a base forced-down lifter with mode switch offering draft, position, draft-position combined and float control; a rear independent PTO with standard 540/1000 r/min and multiple speed options; a 134 L large fuel tank; paddy-type sealed design; oil-bath disc brakes with full hydraulic steering for light, reliable braking and steering; a fully enclosed safety cab with suspended seat for comfort.

Engine Rated Power kW/HP:
70

Engine Rated Speed r/min:
2200

Overall Dimensions (L×W×H) mm:
4792×2250×2710

Maximum Ballast Weight Front/Rear kg:
400/300

Front Track Width (Factory) mm:
1602-1730(1602)

Rear Track Width (Factory) mm:
1516-2048(1516)

Tire Model (Front/Rear):
12.4-26 (paddy)/16.9-38 (paddy)

Minimum Turning Radius (Without Braking) m:
4.9±0.3

Minimum Ground Clearance mm:
440

Number of Gears:
12F+12R

Rated Drawbar Pull kN:
20.9

PTO Power kW:
61

Plowing Depth Control Method:
Position Control, Float Control, Draft Control, Combined Force-Position Control

PTO Speed (r/min):
540/1000 (Optional 720/1000)
