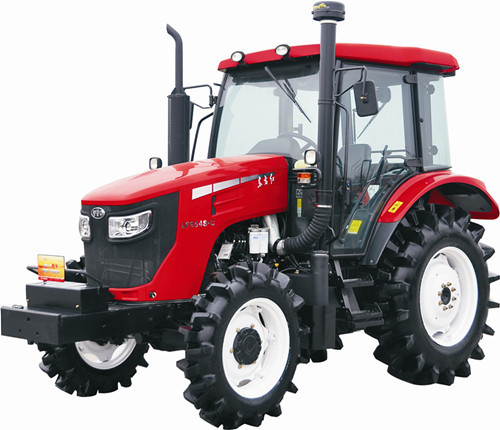

Dongfanghong-LF904S-C

YTO Group (YTO)

Write a Review
SKU:
Dongfanghong-LF904S-C-4WD

Product Overview

Application:
Designed for paddy rotary tillage, plowing, harrowing, subsoiling, field preparation and combined implement operations, mainly for paddy fields with dry-land capability. It is a 90-HP-class, power-shuttle, high-traction paddy-type 4WD tractor.

Highlights:
The Dongfanghong LF904S-C series is a YTO Zhirui LF-C power-shuttle tractor developed for efficient forward/reverse paddy work. It is equipped with an LR4A3LU22/0662E four-cylinder turbocharged engine rated 66.2 kW/2200 rpm with ample power reserve; a 12F+12R front-mounted power-shuttle transmission with electro-hydraulic shuttle switch enables forward/reverse changes without stopping; a 12-inch dry dual-action clutch, electro-hydraulically operated for light effort; a base forced-down lifter with position and float control standard, optional draft-position combined control; a rear independent PTO with multiple speeds for wide implement compatibility; a 134 L large fuel tank for longer operation; paddy-type sealed design with small turning radius; a fully enclosed safety cab with suspended seat for comfort.

Engine Rated Power kW/HP:
66.2

Engine Rated Speed r/min:
2200

Overall Dimensions (L×W×H) mm:
4792×2250×2890

Maximum Ballast Weight Front/Rear kg:
400/300

Front Track Width (Factory) mm:
1602-1730(1602)

Rear Track Width (Factory) mm:
1516-2048(1516)

Tire Model (Front/Rear):
12.4-26 (paddy) / 16.9-34 (paddy)

Minimum Turning Radius (Without Braking) m:
4.9±0.3

Minimum Ground Clearance mm:
440

Number of Gears:
12F+12R

Forward Speed Range km/h:
2.12~38.31

Rated Drawbar Pull kN:
19.8

PTO Power kW:
58

Plowing Depth Control Method:
Position Control, Float Control, Draft Control, Combined Force-Position Control

PTO Speed (r/min):
650/720 (Optional)
