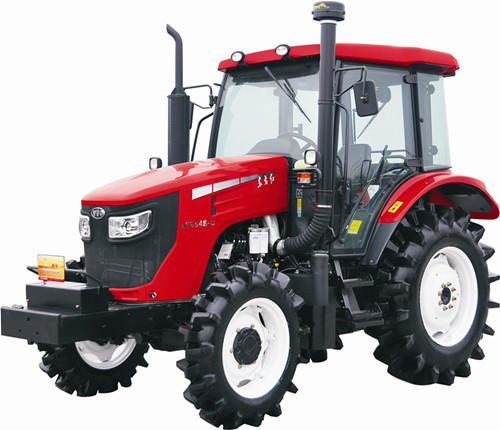

Dongfanghong-LF804S-C

YTO Group (YTO)

Write a Review
SKU:
Dongfanghong-LF804S-C-4WD

Product Overview

Application:
Designed for paddy rotary tillage, plowing, harrowing, pre-transplanting preparation, intertillage and combined transport, mainly for paddy fields with dry-land capability. It is an 80-HP-class, power-shuttle, high-clearance paddy-type 4WD tractor.

Highlights:
The Dongfanghong LF804S-C series is a YTO Zhirui LF-C power-shuttle tractor developed for frequent forward/reverse paddy work. It is equipped with an LR4R3LU22/0588E four-cylinder turbocharged engine rated 58.8 kW/2200 rpm with ≥20% torque reserve; a 12F+12R front-mounted power-shuttle transmission with electro-hydraulic shuttle switch lets the operator change direction with a flick, 180-degree shuttle without frequent stop-start, raising efficiency by 15%+; a 12-inch dry single-plate dual-action clutch, electro-hydraulically operated for light effort; a base forced-down lifter with mode switch, position and float control standard, optional draft and draft-position combined control; a 134 L large fuel tank to reduce refueling frequency; paddy-type sealed design with small turning radius and 440 mm ground clearance; a fully enclosed safety cab with suspended seat for long-shift comfort.

Engine Rated Power kW/HP:
58.8

Engine Rated Speed r/min:
2200

Overall Dimensions (L×W×H) mm:
4792×2140×2710

Maximum Ballast Weight Front/Rear kg:
400/300

Front Track Width (Factory) mm:
1602-1730(1602)

Rear Track Width (Factory) mm:
1496-2028(1496)

Tire Model (Front/Rear):
9.5-24 (paddy) / 11-32 (paddy)

Minimum Turning Radius (Without Braking) m:
4.9±0.3

Minimum Ground Clearance mm:
440

Number of Gears:
12F+12R

Forward Speed Range km/h:
2.04~37.64

Rated Drawbar Pull kN:
17.6

PTO Power kW:
50

Plowing Depth Control Method:
Position Control, Float Control, Draft Control, Combined Force-Position Control

PTO Speed (r/min):
540/720
