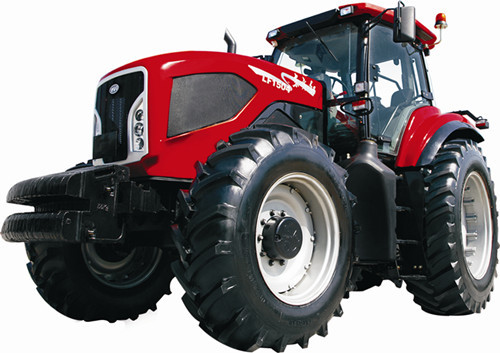

Dongfanghong-LF1504

YTO

Write a Review
SKU:
Dongfanghong-LF1504

Product Overview

Application:
Various farmland operations, transport and other operations

Highlights:
110.3; 150 HP; Model / LR6A3LU22; 4WD; inline; forced-circulation water cooling; 4-stroke

Model:
LF1504

Drive Type:
Four-Wheel Drive

HP:
150 hp

Overall Dimensions (L×W×H):
5225×2489×2960 mm

Minimum Operating Mass:
6567 kg

Operating Efficiency:
Forward speed range 2.8–37.1 (16F/12R) km/h; reverse speed range 3.2–22.1 (16F/12R) km/h

Overall Dimensions (LxWxH) (mm):
5160×2610×3085

Minimum Operating Mass (kg):
6480

Maximum Ballast Weight Front/Rear (kg):
720/300

Engine:
Model / LR6A3LU22/1103E

Type:
Inline, forced-circulation water cooling, 4-stroke, direct-injection combustion chamber

Rated Power (kW):
110.3

Transmission Gears Forward/Reverse:
16F+12R

PTO Speed:
540/1000 dual speed, independent r/min

Model:
LF1504

Manufacturer:
First Tractor Company Limited (YTO)
